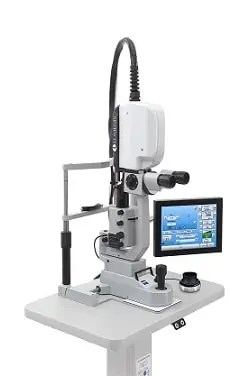

Lumenis Array LaserLink TM

Lumenis Array LaserLink TM

Array LaserLinkTM

Pattern Scanning Laser Technology

Lumenis introduces ArrayTM LaserLinkTM a technologically advanced delivery system that significantly enhances standard laser treatment by providing new pattern scanning capabilities to photocoagulation lasers and considerably reducing treatment time.  Array offers a range of laser spot sizes from 50µm to 1000µm in single spot mode, 100µm to 500µm in pattern scanning mode.

Examples of Scan Pattern Shapes

Category: Tag:

The ArrayTM LaserLinkTM Features The Following Benefits:

Compatibility

Links with Lumenis lasers:

  • Vision One
  • Novus Spectra

And attaches to most popular slit lamps:

  • Lumenis 980
  • Lumenis 990*
  • Zeiss SL130
  • Zeiss 30SL
  • Haag Streit 900 BQ*

Versatility

With Lumenis multi-wavelength technology, Array delivers any of-following wavelengths:

  • Green: 532 nm
  • Yellow: 577 nm
  • Red: 659 nm

Array treatment options:

  • Single spot
  • Pulse mode
  • Various pattern

Array offers a range of laser spot sizes from 50µm to 1000µm in single spot mode, 100µm to 500µm in pattern scanning mode.

*May have a later release

Sendibility

  • Intuitive touchscreen
    presents logical workflow;
  • Custom Touchpad
    is easily moved for use with right or left hand and provides Eyes Forward Control
  • Heads Up Display
    seen as text on the retina, shows confirmation of important parameter changes
  • Frame Mode
    displays a precise outline of the area in which the pattern will be administered
  • Titrate Mode
    is used to establish appropriate pattern laser parameters with a single spot
  • Contact lens menu
    lists commonly used lenses for calculation of laser spot size on the retina Spot size on retina tells doctor actual parameter of treatment

The ArrayTM LaserLinkTM is compatible with Lumenis Vision One and Novus Spectra.

And, attaches to most popular slit lamps:

  • Lumenis 980
  • Lumenis 990*
  • Zeiss SL130
  • Zeiss 30SL
  • Haag Streit 900 BQ*

The ArrayTM LaserLinkTM is versatile. With Lumenis multi-wavelength technology.

Array delivers any of the following wavelengths:

  • Green: 532 nm
  • Yellow: 577 nm
  • Red: 659 nm

Customized Treatment to Meet the Patient and Physician Needs

Continuously Variable Spot Size

  • Single spot from 50µm to 1000µm
  • Pattern mode from 100µm to 500µm
  • For customized treatment for the particular disease state and tissue response

Selectable Spot Spacing

  • From 0 to 3 times the spot diameter within a circle
  • From 0.25 to 3 times the spot diameter in other patterns

Variety of Adjustable Patterns includes single spot and 6 shapes

  • Square:  2 to 5 spots per side
  • Line: 2 spots in one line up to 4 spots in each of 5 lines
  • Triangle: 6 or 15 spots
  • Circle: Single adjustable ring
  • Quarter of a circle: 1 or 3 adjustable arcs
  • Half of a circle: 1 or 3 adjustable arcs

Up to 5 Preset Protocols

  • Retain favorite settings in memory
  • Include settings such as fundus lens selection, laser power, spot size, spot spacing, number of spots and duration

New Generation Clearview Filters

  • Utilize photopic balanced coating to eliminate color distortion
  • Optimize white light transmission or “brightness” of the physician’s view

Patented SureSpotTM Optics

  • Ensures that the focal point of the laser beam is maintained on the retina
  • Minimizes power density on the cornea and lens for increased safety

Eyes Forward Control

Eyes Forward Control

Control and verify treatment parameters without moving from the slit lamp oculars or losing sight of the target retina

Unique Array 3D Micromanipulator

  • Controls laser parameters and micromanipulation
  • Adjustable for left or right hand use

Heads Up Display

  • Confirms changes to treatment parameters
  • Displays text on the retina
  • Modified parameters are projected as text onto the retina

Intuitive Touchscreen

  • Fully adjustable monitor
  • Is easily reached and visualized for treatment set up and procedure
